Alloy 5083 aluminum sheet have higher strength than 5052 plate and has exceptional thermal conductivity. In the tempered condition, it retains good formability due to excellent ductility. It is highly suitable for welding and can be hardened by cold work. Because Alloy 5083 exhibits excellent resistance to general corrosion, it is used in marine applications. Since alloy 5083 aluminum sheet is capable of withstanding extremely low temperatures without brittleness or loss of properties, it is especially suited to the cryogenic market.

http://www.detect-metals.com/5083-aluminum-sheet/

Applications of 5083 Aluminm Sheet:

• LNG ship construction

• Pressure vessels

• Storage tanks

• Welded structures (high strength)

• Armor plate

• Drilling rigs

• Chemical Composition Limits (WT %)

Silicon	0.4
Iron	0.4
Copper	0.1
Manganese	0.40-1.0
Magnesium	4.0-4.9
Chromium	0.05-0.25
Zinc	0.25
Titanium	0.15
Others, each	0.05
Others, total	0.15
Balance, Aluminum

• Typical Mechanical PropertiesTemperTensile StrengthYield StrengthElongationO (annealed)H112H116H321

	KSI	KSI	%
42	21	14
43	23	10
46	33	10
46	33	10

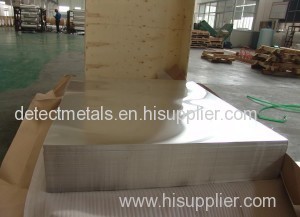

Detect-Metals stocks thicknesses of 5083 aluminum sheet from .250″ – 2.00″, widths up to 120″ and lengths up to 300″ or can accommodate any customer specific requirements. All material is fully certified to ASTM B209 and ASME SB209.
